wooden paddles design

Reply
Created by fatsurf > 9 months ago, 19 Mar 2009
fatsurf
QLD, 305 posts
23 Mar 2009 1:14PM
Thumbs Up

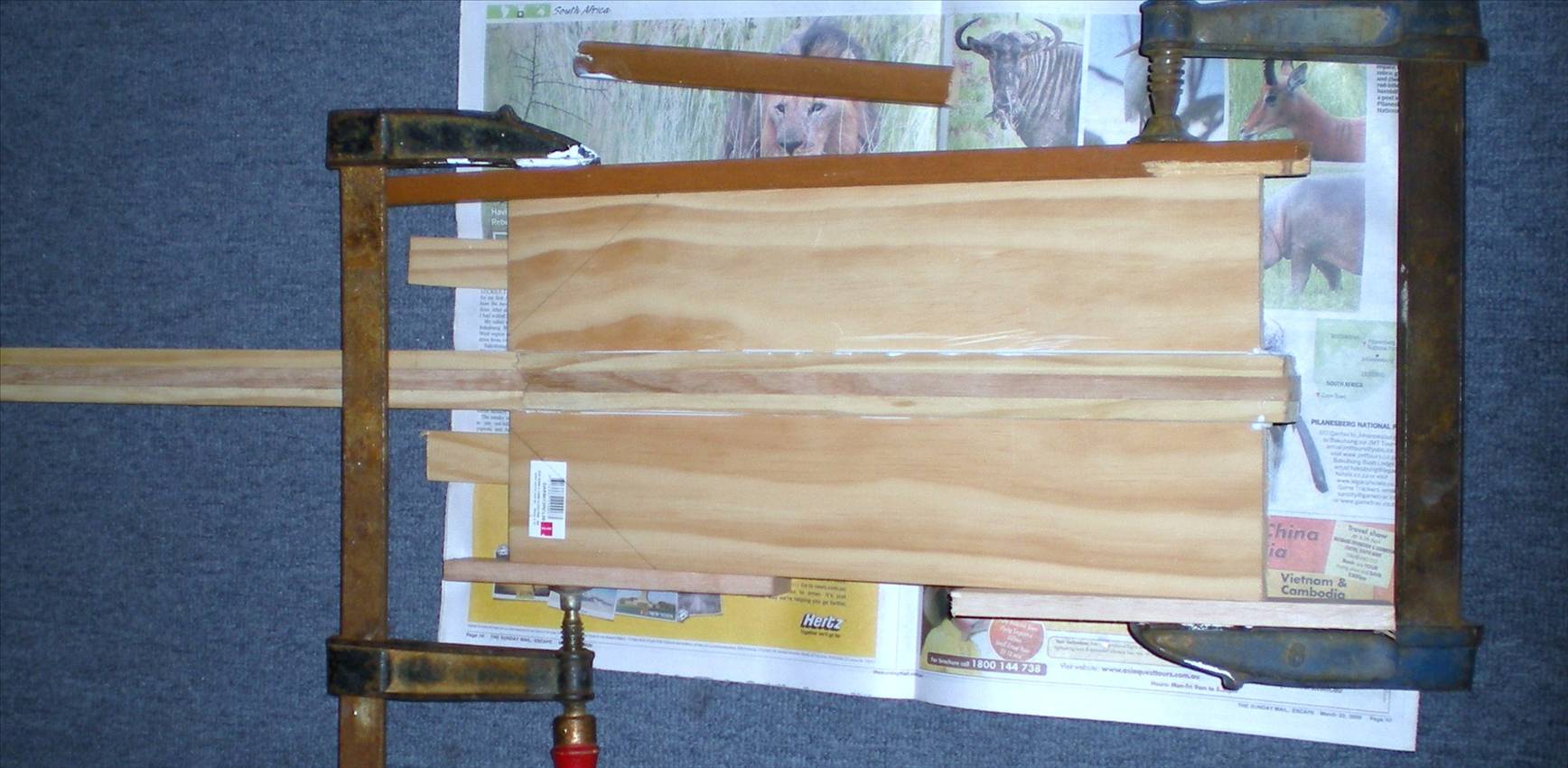

Thought i would rough out the top before gluing up the blades







stoneaxe
136 posts
23 Mar 2009 1:19PM
Thumbs Up

Interesting Clifton...hadn't thought about the soaking up the resin bit. Are you glassing your paddles?

If you use the drawknife Fatsurf just be careful with it. It can take a big chunk of material off real quick.

fatsurf
QLD, 305 posts
23 Mar 2009 2:21PM
Thumbs Up

stoneaxe said...

Interesting Clifton...hadn't thought about the soaking up the resin bit. Are you glassing your paddles?

If you use the drawknife Fatsurf just be careful with it. It can take a big chunk of material off real quick.


so you would sugest sanding and a small plane rather than the draw knife ?

MickV
VIC, 188 posts
23 Mar 2009 3:29PM
Thumbs Up

Go easy with the draw knife if you get one fatsurf, they will remove a serious amount of wood very quickly if you haven't used one before. What glue did you use there ?

fatsurf
QLD, 305 posts
23 Mar 2009 2:34PM
Thumbs Up

MickV said...

Go easy with the draw knife if you get one fatsurf, they will remove a serious amount of wood very quickly if you haven't used one before. What glue did you use there ?




PVA but remeber i dont even own a board yet so will probably end up on the wall
but i will be glassing the blade and epoxy on the rest ?

See how this one goes then i will ask some serious questions and will have access to more tools

MickV
VIC, 188 posts
23 Mar 2009 3:37PM
Thumbs Up

If you do end up using it, just make sure you give it a good coat of epoxy all over cause the PVA will break down in water if exposed.

Mick

fatsurf
QLD, 305 posts
23 Mar 2009 2:38PM
Thumbs Up

MickV said...

If you do end up using it, just make sure you give it a good coat of epoxy all over cause the PVA will break down in water if exposed.

Mick


just for the next one what glues should i be using ?

thanks in advance

MickV
VIC, 188 posts
23 Mar 2009 3:48PM
Thumbs Up

fatsurf said...

MickV said...

If you do end up using it, just make sure you give it a good coat of epoxy all over cause the PVA will break down in water if exposed.

Mick


[just for the next one what glues should i be using ?

thanks in advance]


Epoxy would be the way to go, can make a big mess though so wear gloves and clean off excess with acetone before it dries.

Mick

stoneaxe
136 posts
24 Mar 2009 1:02PM
Thumbs Up

Malama uses DAP two part resorcinol glue. I haven't tried it yet. Still have some epoxy to use up 1st.

http://www.dap.com/product_details.aspx?BrandID=64&SubcatID=10

I do use my drawknife. But I do it mostly for sentimental reasons...was my Dads and Granddads. Just have to be careful. Final shaping is still done by sanding. Probably better just to get an angle grinder and use some heavy grit. It's what most folks do.

Clifton
TAS, 23 posts
24 Mar 2009 8:17PM
Thumbs Up

yes my paddles are glassed all over , i use a water proof pva good strength and gap filling and no mixing there are plenty on the market any good joinery suppies place will have a few to chose from.

fatsurf
QLD, 305 posts
28 Mar 2009 6:41PM
Thumbs Up

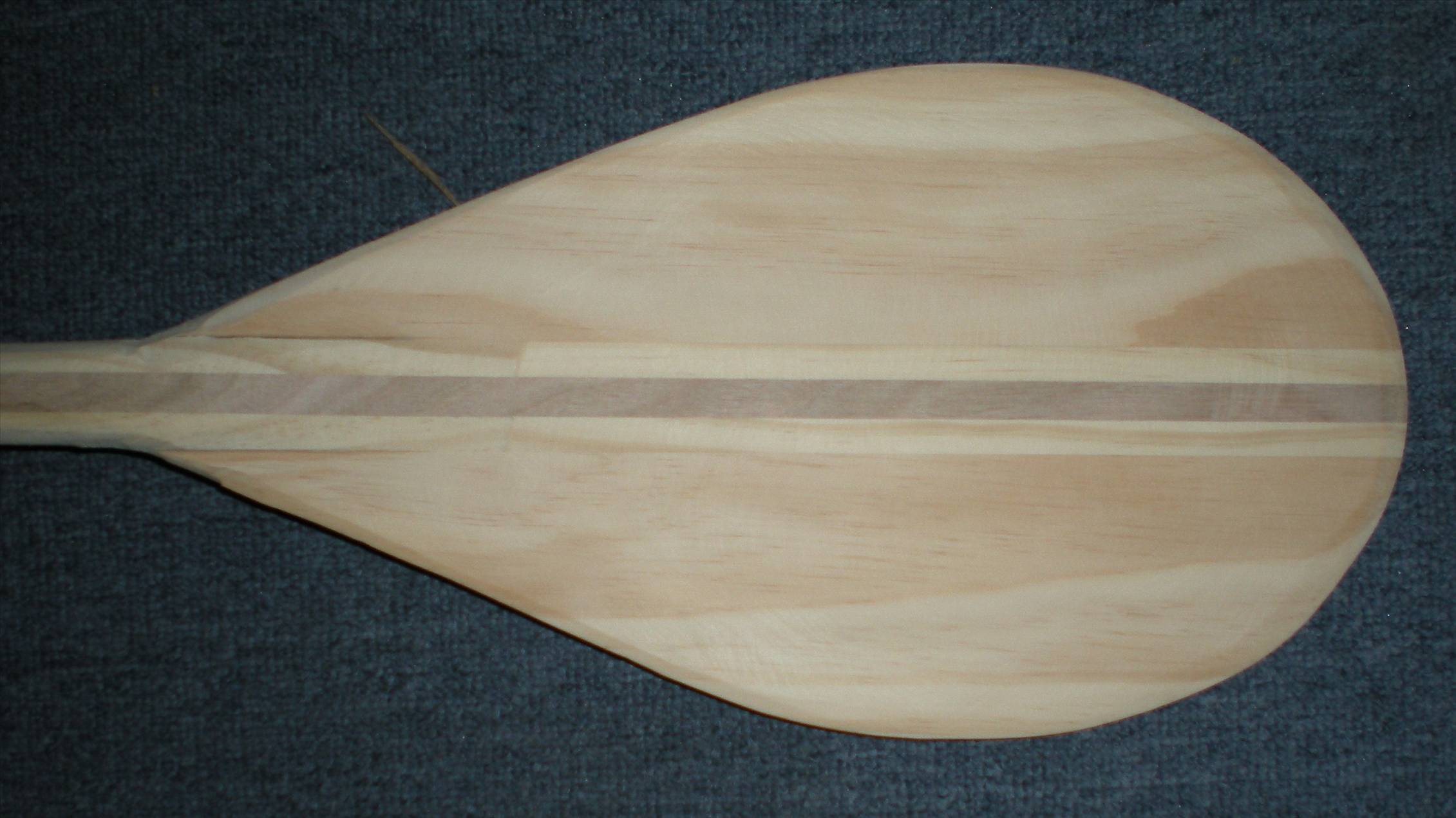

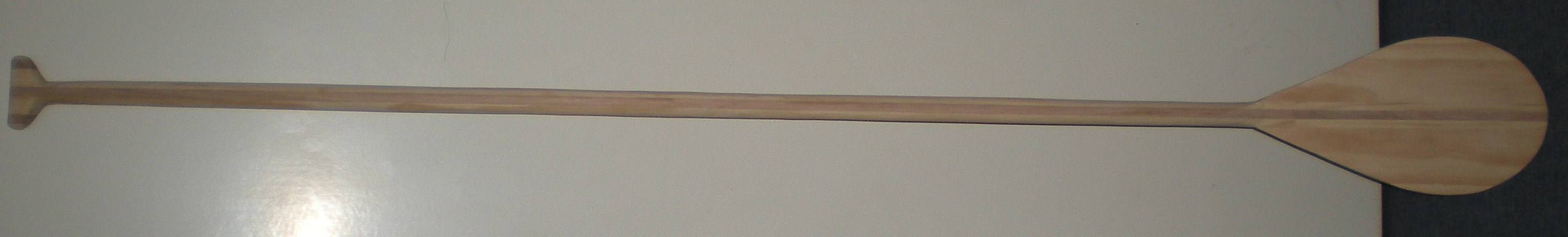

now its time for hand sanding mmmm time time time
oh guys i need to get hold of some glass and resin for blade and handle any one sell me some ? looked at the repair kits but glass isent big enough
1

2

3

DavidJohn
VIC, 17454 posts
28 Mar 2009 10:51PM
Thumbs Up

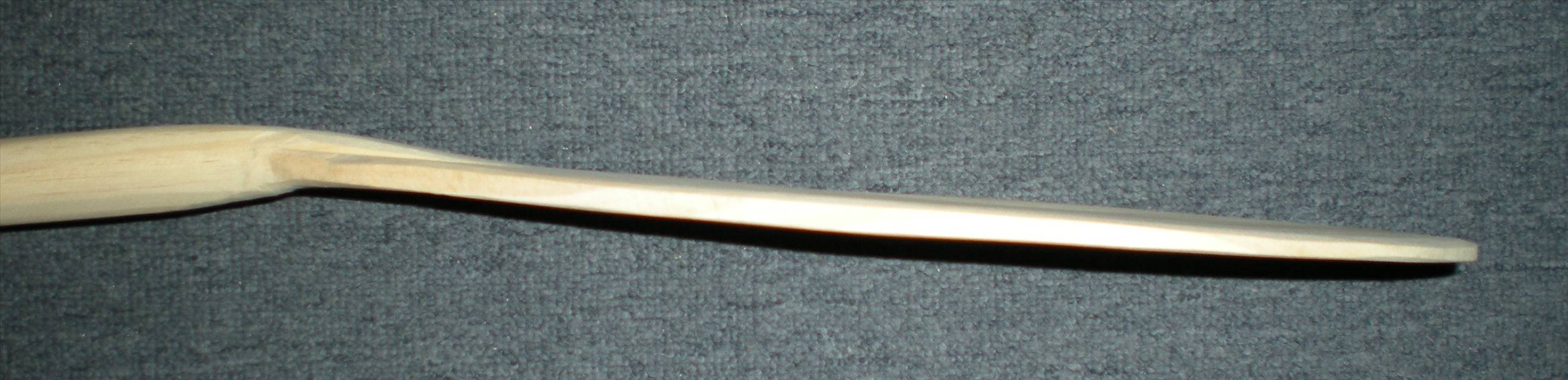

Looks great.. Just wondering why you made the blade round like that.. and also the fat T grip handle..

That must be hard to fit you thumb under?.. Maybe I'm just too used to the skinny Kialoa T grip handle..

DJ

fatsurf
QLD, 305 posts
28 Mar 2009 10:29PM
Thumbs Up

DavidJohn said...

Looks great.. Just wondering why you made the blade round like that.. and also the fat T grip handle..

That must be hard to fit you thumb under?.. Maybe I'm just too used to the skinny Kialoa T grip handle..

DJ


well first padddle so probably made it wrong and the round can be flatened
and the second i have very large hands mate and it feels good in my hand thats all

should i flatten the bottom of the blade ????
remember i dont even have a sup to try it lol

please let me know as just now have finnished the finall sanding and would like to epoxy tomorrow ?

DavidJohn
VIC, 17454 posts
28 Mar 2009 11:46PM
Thumbs Up

I'm not picking..

It may even work better than the typical flat base blades because it will enter the water softer. The new Naish paddles seem more rounded.

I'd leave it and see how it goes.. Maybe cut a V into it like what Naish have done..

DJ

fatsurf
QLD, 305 posts
28 Mar 2009 10:48PM
Thumbs Up

DavidJohn said...

I'm not picking..

It may even work better than the typical flat base blades because it will enter the water softer. The new Naish paddles seem more rounded.

I'd leave it and see how it goes.

DJ


i know your not mate

and i used to make goat boat paddles so probably why i went for the more rounded ?

will get Mac to test once finished see what he thinks then hang it till i get my SUP lol

fatsurf
QLD, 305 posts
29 Mar 2009 9:26AM
Thumbs Up

Thats unusual is that a new one ?
wonder how it would go

you buying one mate ?

62mac
WA, 24860 posts
29 Mar 2009 4:55PM
Thumbs Up

How long is the blade fatsurf? 8inch?
I'd love a timber hanger paddle!So once
you knock out a couple,I'll place an order
If not Piros might sell me one,btw his paddles
are working pieces of ART!

fatsurf
QLD, 305 posts
29 Mar 2009 7:03PM
Thumbs Up

62mac said...

How long is the blade fatsurf? 8inch?
I'd love a timber hanger paddle!So once
you knock out a couple,I'll place an order
If not Piros might sell me one,btw his paddles
are working pieces of ART!


i know mine is a bit bland but first one and minimal tools so will see how the sons comes out mate

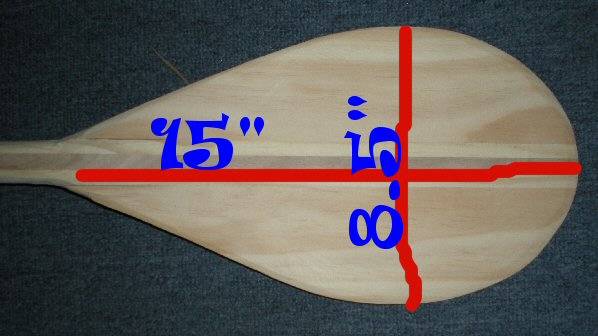

blade is 15" from where it finishes on the handle and 8.5" wide mate over all it is 6 above my head



62mac
WA, 24860 posts
29 Mar 2009 5:06PM
Thumbs Up

I've been sitting ,watching and enjoying this threat with interest!
Anyone who can make a timber paddle has my respect! So is the
logo (fat stick) (fat shaft)(fat woodie)?

fatsurf
QLD, 305 posts
29 Mar 2009 7:09PM
Thumbs Up

will glass it next week mate and start on the sons

will look into more mixture of timbers but the weight and grip feel realy good so will see how it paddles after that

so far ive spent 30 dollars on it and mabe 3 hours but glassing will ad 2 or more as well



62mac
WA, 24860 posts
29 Mar 2009 5:14PM
Thumbs Up

You must be in sales and marketing right.love your work

fatsurf
QLD, 305 posts
29 Mar 2009 7:18PM
Thumbs Up

mabe after i di sons and yours( need a design you would like mate ) i will have a go at a wooden sup mate now that would be cool but take a heap of time LOL

MMMMMMMMMMMMMMM i like the sound of it thou just make it for river work mmmm
tempting

and yes mate have done my share of adverts for gerry lol

62mac
WA, 24860 posts
31 Mar 2009 9:41PM
Thumbs Up

Hey fat, you finished that artwork yet?Ok no,back to the shed!

fatsurf
QLD, 305 posts
1 Apr 2009 7:11AM
Thumbs Up

62mac said...

Hey fat, you finished that artwork yet?Ok no,back to the shed!


going to do the boys then glass them both mate saves double clean up

62mac
WA, 24860 posts
11 Apr 2009 4:07PM
Thumbs Up

Lost fatsurf?? He must be making a sh-t load of paddles
